Dip tube Cutting Machine SPEEDCUT 21
Pneumatic Semi-automatic dip-tube cutter
Dip Tube Cutting Machine for liquid sprayer or pump. Perfect for disinfectant and sanitizing bottles and flacons as well as for the perfume industry. SPEEDCUT 21 is an irreplaceable tool for cutting any dip-tube thanks to its simple mechanism and cost efficiency.

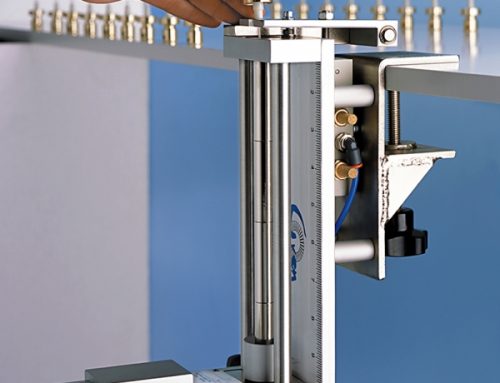

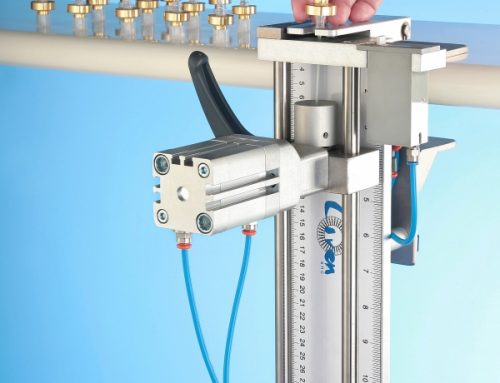

By inserting the tube into a custom made hole and applying a slight pressure, an air switch triggers a cylinder connected to a blade cutting with a concave shape up to 10mm diameter dip-tubes.
Length adjustment depends on the positioning of the cutting apparatus, and can be varied from a minimum of 30 mm to a maximum of 260 mm. SPEED CUT 21 can be powered by any compressed air supply given the limited amount of air necessary for its use. As a consequence, speed and productivity rates depend solely on the operator’s pace.
Each sprayer or pump has its own requirements, as the design of the bottle determines the dip tube length. Coven Egidio helps you to find the right combination if you let us know which bottle requires a pump.
Dimensioni: 20x36x36 cm
Net weight: 5 kg
Working pressure: 6 bar/87 psi
Maximum diameter cut: 10 mm
Maximum length cut: 260 mm
